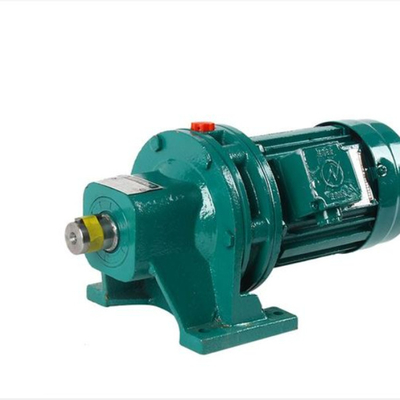

Drip-proof Motor Planetary Gearbox AC Pin Wheel Reducer Gearbox Gear Cycloidal Motor For Mixer

5 Pieces
MOQ
$110.00(5 - 9 Pieces) $100.00(>=10 Pieces)
가격
Drip-proof Motor Planetary Gearbox AC Pin Wheel Reducer Gearbox Gear Cycloidal Motor For Mixer
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Warranty: 3months-1year, 12 months
Model Number: TCG-050
Type: Asynchronous Motor, Vertical and horizontal type
Frequency: 50-60HZ
Phase: Three-phase, single/three phase
Protect Feature: Drip-proof
AC Voltage: 208-230 / 240 V
Efficiency: 85%
Motor power: 90w--30kw
Voltage: 110/220/400/660v
Gear ration: 3:1--5000:1
Speed: 1420/2800RPM
Wire: 100% copper
인증: CCC, ce, RoHS
기본 정보
인증: CCC, ce, RoHS
Model Number: TCG-050
결제 및 배송 조건
Packaging Details: Carton
Supply Ability: 10000 Piece/Pieces per Month
제품 설명

Product Use
The "WORUISEN" cycloid gear reducer is a novel transmission mechanism with the principle of K-H-V less tooth difference planetary transmission and the meshing of cycloid needle and tooth. It is widely used in textile printing and dyeing, light industry food, metallurgical miners, petrochemical, lifting transportation and engineering machinery and other fields.
The cycloidal pinwheel reducer produced by our factory is of excellent quality, reliable performance, complete specifications and reasonable price.
Product features
1.High speed ratio and high efficiency
2.The single stage transmission can achieve the reduction ratio of 1:87 and the efficiency is above%90. If multistage transmission is adopted, the deceleration ratio will be greater.
3.Compact structure, small volume
Because of the principle of planetary transmission, the input shaft and the output shaft are on the same axis, so the structure is compact and the volume is small.
4.Low running noise and low noise
The mechanism of cycloidal needle tooth engagement is large, the overlap coefficient is large, and the mechanism is stable.
5.Reliable use, long life
Because the main parts are bearing steel, after quenching treatment (HRC58-62) to obtain high strength, and the part of transmission contact with rolling friction, so long durable life,
6.Reasonable design, convenient maintenance, easy decomposition and installation, minimum number of parts and simple lubrication, make cycloidal pinwheel reducer trusted by users.
